RHTX Series mesh-protected weather-proof humidity sensor probe housing

RHTX Series mesh-protected weather-proof humidity sensor probe housing

Short Description:


  • Brand: HENGKO
  • Probe housing: sintered stainless steel material, can be customized
  • Pore Size: 20um 30-40, 40-50, 50-60, 60-70, 70-90
  • Type: RHT sensor
  • Theory: current and inductance
  • Applications: HVAC, consumer goods,weather stations, test & measurement,medical,humidifiers,automation, etc
  • Remarks: Custom designs and fittings available
  • Product Detail

    Product Tags


    hengko advantageHENGKO stainless steel sensor shells are made by sintering 316L powder material at high temperatures. They have been widely used in environmental protection, petroleum, natural gas, chemical, environmental detection, instrumentation, pharmaceutical equipment, and other fields.



    HENGKO stainless steel sensor porous protection guards have excellent performances of smooth and flat internal and external tube walls, uniform pores, and high strength. The dimensional tolerance of most models is controlled within 0.05 mm.



    Brand: HENGKO

    Usage: temperature and humidity sensor

    Theory: current and inductance sensor, current and inductance

    Output: Analog Sensor, digital sensor

    Material: sintered stainless steel material, that can be customized

    Pore Size: 20um 30-40, 40-50, 50-60, 60-70, 70-90

    Type: RHT sensor

    Accuracy: temperature: ±0.2℃  @0-90℃ ,   humidity: ±2% RH  @(0~100)% RH

    Features: Excellent long-term stability, LCD display or weatherproof transmitter cover, maximum load of 665Ω

    Applications: drying, test chamber, combustion air, meteorological measurement

    Certificate: ISO9001 SGS



     Want more information or would like to receive a quote?

    Click the Online Service at the top right to contact our salespeople.



    RHTXX Series mesh-protected weather-proof temperature/humidity sensor I2C stainless steel sensor prober housing for greenhouse temperature and humidity sensor

    Product Show

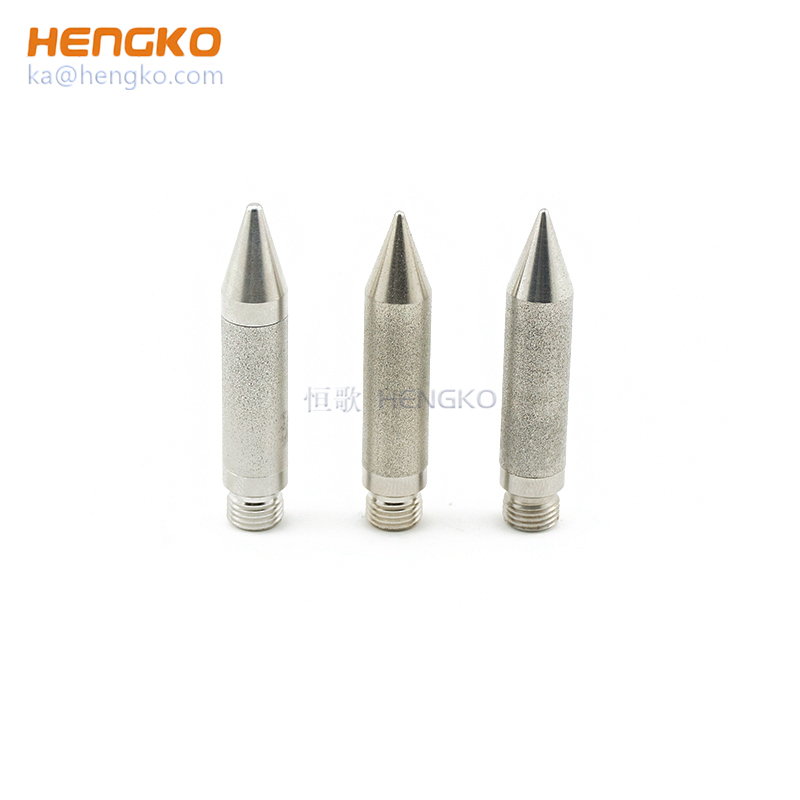

     humidity sensor housing stainless steel sensor housing with tip humidity sensor housing tip

    Product Description

    1. Large air permeability, fast gas humidity flow and exchange rate,  uniform divergence.  it is far superior to other peer products with the optimization of special processes in HENGKO.

    2. Excellent ability of anti-dust, anti-corrosion, and waterproof(IP65)

    3. Protecting PCB modules from dust, particulate pollution, and oxidation of most chemicals to ensure sensors a long-term stable operation, higher reliability, and long service life

    4. Remarkable performance in harsh environments such as small spaces, long-distance spaces, pipe, trench, wall pass mounting, high-pressure spaces, vacuum chambers, test chambers, large flow mediums, high humidity areas, high temperature and heat environments, hot drying process, dangerous zones, explosive environment containing explosive gas or dust, etc

    5. the HENGKO stainless steel porous housing for the sensor probe has accurate pore size, and uniform and even-distributed apertures. Pore size range: 5μm to 120 microns; it has good filtration dustproof and interception effect, and high filtration efficiency. The pore size, speed of the flow, and other performances can be customized as requested; Stable structure, particles are tightly bound without migration, almost inseparable under harsh environments.

     HENGKO Temperature and Humidity probe data sheet



    HENGKO humidity and temperature sensor applicationsOEM-Gas-detector-accessoreis-Process-Chart23040301hengko certificate hengko Parners
