durable weather-proof sensor porous protection housing guard, for dew point soil temperature and humidity moisture detector probe, 316L stainless steel material

Short Description:


  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: TT, paypal, credit card, etc.
  • Probe housing: sintered stainless steel material, can be customized
  • Pore Size: 20um 30-40, 40-50, 50-60, 60-70, 70-90
  • Theory: current and inductance
  • Applications: agriculture, soil, egg incubator, HVAC, consumer goods ,weather stations, test & measurement, automation, medical, humidifiers
  • Product Detail

    Product Tags

    316L stainless steel dew point soil temperature and humidity moisture detector probe durable weather-proof sensor porous protection housing guard



    HENGKO stainless steel sensor housing are made by sintering 316L powder material in high temperature. They have been widely used in environmental protection, petroleum, natural gas, chemical, environmental detection, instrumentation, pharmaceutical equipment and other fields.

    HENGKO stainless steel sensor porous protection guard have excellent performances of smooth and flat internal and external tube wall, uniform pores and high strength. The dimensional tolerance of most models is controled within 0.05 mm.

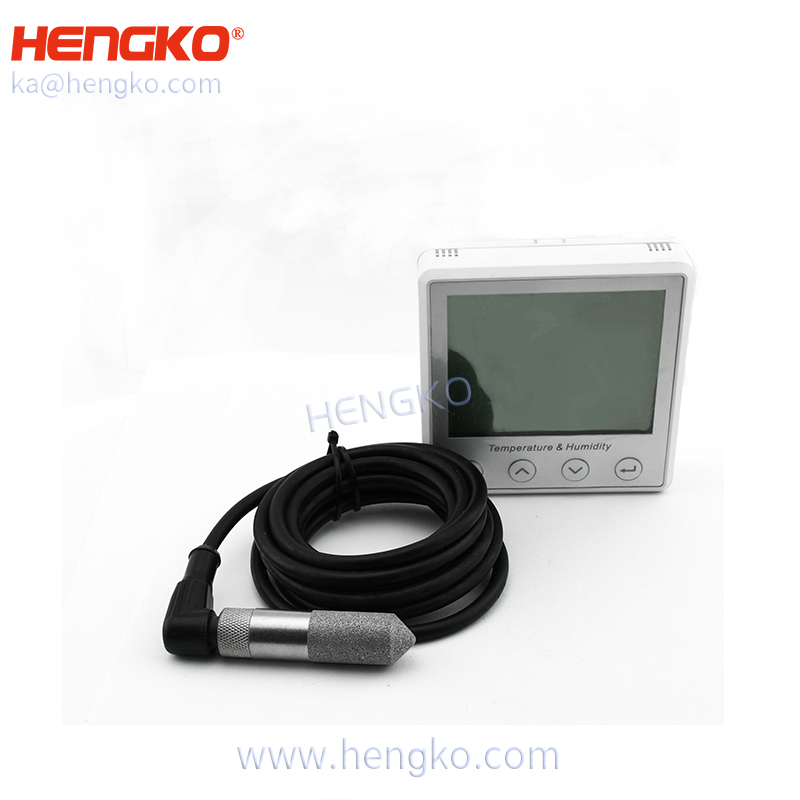

    HENGKO temperature and humidity detector adopts high precision SHT series sensor euipped with a sintered metal filter shell for large air permeability, fast gas humidity flow and exchange rate. The shell is is waterproof and will keep water from seeping into the body of the sensor and damaging it, but allows air to pass through so that it can measure the humidity (moisture) of the environment. It has been widely used in HVAC, consumer goods, weather stations, test & measurement, automation, medical, humidifiers, especially perform well in an extreme environment like acid, alkali, corrosion, high temperature and pressure.

    HENGKO temperature humidity detector probe module have excellent performances of high precision:temperature +-0.1°C, humidity +-1.5%RH, mutiple output: 0-20mA, RS485 …… , various SHT sensor optional, wireless and wired, various probes optional,various sensor housings optional.



     Want more information or wouldl like to receive a quote?

    Click the Online Service at the top right to contact our salespeople.

    E-mail:

                                         ka@hengko.com              sales@hengko.com

    Product Show

    5  DSC_3341 拷贝 (2)

    1

    4 拷贝

    DSC_2975

    Exif_JPEG_PICTURE

    DSC_3825

    DSC_5858 拷贝DSC_2147 C (2)

    DSC_4024 C (2)

    DSC_4028 C (2)



    Product Description

     1. Large air permeability, fast gas humidity flow and exchange rate,  uniform divergence.  it is far superior to other peer products with the optimization of special process in HENGKO.

    2. Excellent ability of anti-dust, anti-corrosion and waterproof(IP65)

    3. Protecting PCB modules from dust, particulate pollution and oxidation of most chemicals to ensure sensors a long-term stable operation, higher reliability and long service life

    4. Remarkable performance in harsh environment such as small space, long distance space, pipe, trench, wall pass mounting, high pressure space, vacuum chamber, test chamber, large flow mediums, high humidity area, high temperature and heat environment, hot drying process, dangerous zones, explosive environment containing explosive gas or dust, etc

    5. 150 bar anti-pressure capability

    6. Seamless integrated, shedding-free

    7. the HENGKO stainless steel porous houisng for sensor probe, have accurate pore size, uniform and even-distributed apertures. Pore size range: 5μm to 120 micron; it have good filtration dustproof and interception effect, high filtration efficiency. The pore size, speed of the flow and other performances can be customized as requested; Stable structure, particles are tightly bound without migration, almost inseparable under harsh environment.



    Temperature and humidity sensor data sheet of HENGKO

    Related Products



    Company Profile



    详情----源文件_04

    详情----源文件_02



    FAQ

    Q1. Why porous metal?

    Filtration systems using sintered metal media for gaseous, solid and liquid separation have proven to be an effective and

    efficient alternative to other separation methods that can be vulnerable to pressure peaks, high temperatures and/or corrosive

    environments. Sintered metal is highly efficient in removing particulates, delivers a reliable performance, is easy to clean and has

     a long life in comparison with leaf filters, filter bags and plate and frame filters.



    Q2. What kind of structures can you make?

    We make various types like disc, tube, cup, cartridge, plate, etc.



    Q3. Do you provide customized services?

    Yes, of course.



    Q4. If samples available?

    –  Sure, no problem.
