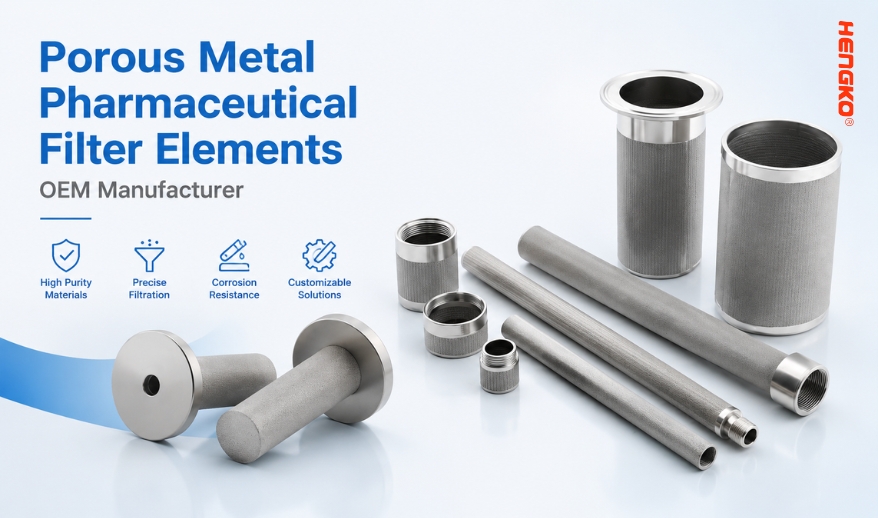

Pharmaceutical Filter Elements OEM Manufacturer

Types of Pharmaceutical / Metal Industrial Filter

Pharmaceutical and metal industrial filters play a crucial role in ensuring the purity, safety,

and effectiveness of various products. Here’s a look at some common types of filters

used in these industries:

1. Sintered Metal Filters:

Composed of stainless steel, bronze, or titanium, these filters are known for their robustness

and ability to withstand high temperatures and corrosive environments.

They are ideal for applications requiring precise filtration under harsh conditions.

2. Membrane Filters:

These are used for precise microbial removal and are commonly made from materials like

PTFE, PVDF, or nylon. Membrane filters are crucial in sterile filtration processes in the

pharmaceutical industry.

3. Cartridge Filters:

Versatile and replaceable, cartridge filters can handle a wide range of substances, including

gases and liquids. They are available in various materials such as fiberglass, cellulose, and

synthetic compounds, making them suitable for diverse applications.

4. Capsule Filters:

These are compact, disposable filters used for small-scale laboratory work and pilot applications.

They typically encapsulate a membrane filter in a polypropylene or stainless steel housing.

5. Wire Mesh Filters:

Made from woven metal wires, these filters are used for applications involving larger particles.

They are reusable and can be cleaned easily, making them cost-effective for certain uses.

6. Depth Filters:

Constructed from layers of fibrous materials (e.g., fiberglass or cellulose), depth filters trap

particles within their matrix and are excellent for high-load applications.

7. Coalescing Filters:

These are used to separate droplets of liquid from gases or vapor streams, commonly used

in the pharmaceutical industry to ensure the purity of compressed air and gases.

Each type of filter is designed to meet specific operational needs and regulatory requirements

in the pharmaceutical and industrial sectors, ensuring that processes run efficiently and comply with

health and safety standards.

Main Features of Porous Metal Pharmaceutical / Metal Industrial Filter

Porous metal filters, particularly those used in pharmaceutical and industrial applications, offer a range of features

that make them ideal for demanding environments. Here are the main features of these filters:

1.High Temperature Resistance:

Porous metal filters are capable of operating effectively at high temperatures, making them suitable

for processes that involve heat, such as sterilization and high-temperature chemical reactions.

2.Chemical Resistance:

These filters are typically made from materials like stainless steel, titanium, or specialty alloys, which

offer excellent resistance to a wide range of chemicals. This makes them ideal for use with aggressive

solvents, acids, and bases.

3.Mechanical Strength:

The robust construction of porous metal filters ensures durability and resistance to physical stress,

which is crucial in high-pressure applications and environments where mechanical integrity is paramount.

4.Long Service Life:

Due to their durability and ability to withstand harsh conditions without degradation, porous metal filters

often have a longer service life compared to other types of filters.

This reduces the need for frequent replacements and lowers long-term operational costs.

5.High Porosity with Controlled Pore Size:

Porous metal filters can be engineered with high porosity, which allows for high flow rates while still

performing effective filtration. The pore size can be precisely controlled to target specific particle sizes,

providing excellent separation efficiency.

6.Cleanability and Reusability:

These filters can be cleaned in situ or through backflushing, ultrasonic cleaning, or other methods, which

allows for repeated use and reduces waste associated with disposable filters.

7.Biocompatibility:

Materials used in porous metal filters are often biocompatible, making them safe for pharmaceutical applications

where product purity and safety are critical.

8.Customization:

Porous metal filters can be customized in terms of shape, size, pore size, and material to meet specific application

requirements, offering flexibility across various industrial applications.

These features make porous metal filters particularly valuable in industries where reliability, efficiency, and compliance

with strict regulatory standards are required.

Understanding the features and types of filters used in pharmaceutical or medical industries is crucial.

If you're looking for tailored OEM solutions for metal or pharmaceutical filter elements,

HENGKO is here to help customize your specialized filters.

Contact us at ka@hengko.com to discuss your specific requirements.

We offer tailor-made solutions designed to meet your unique needs in the pharmaceutical and medical sectors.
