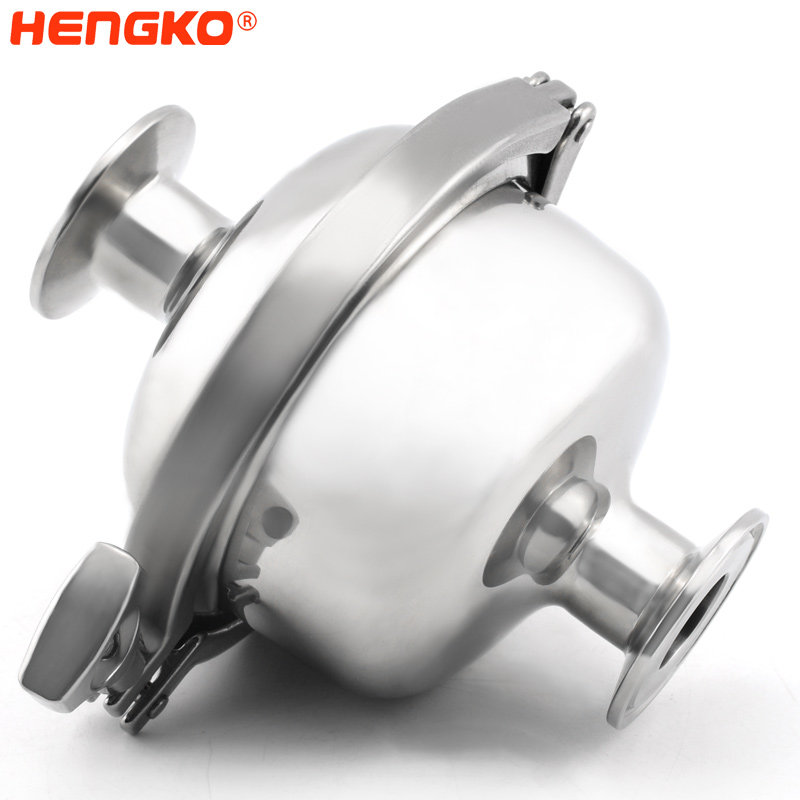

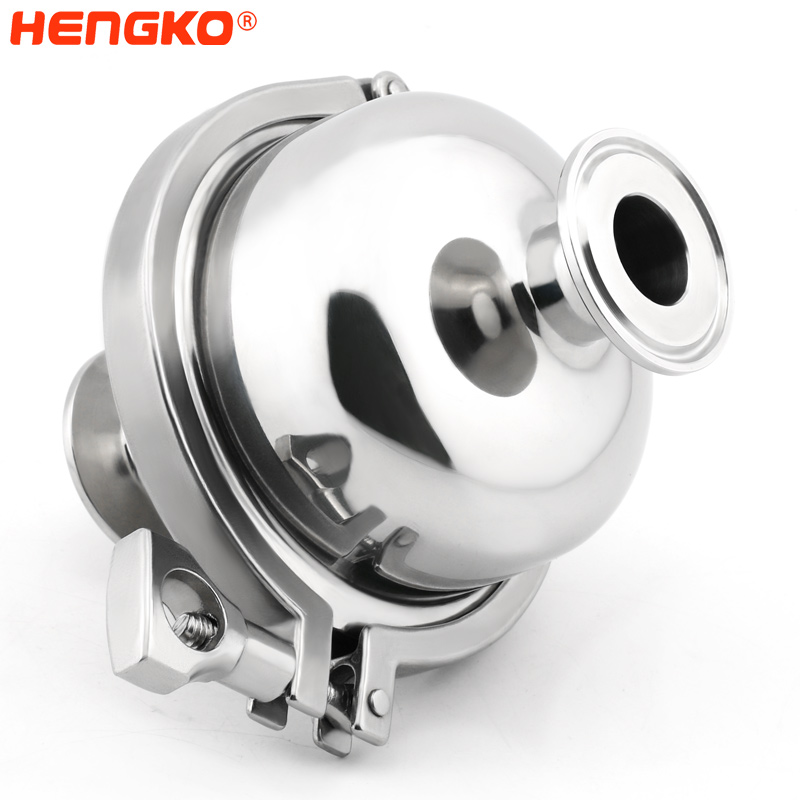

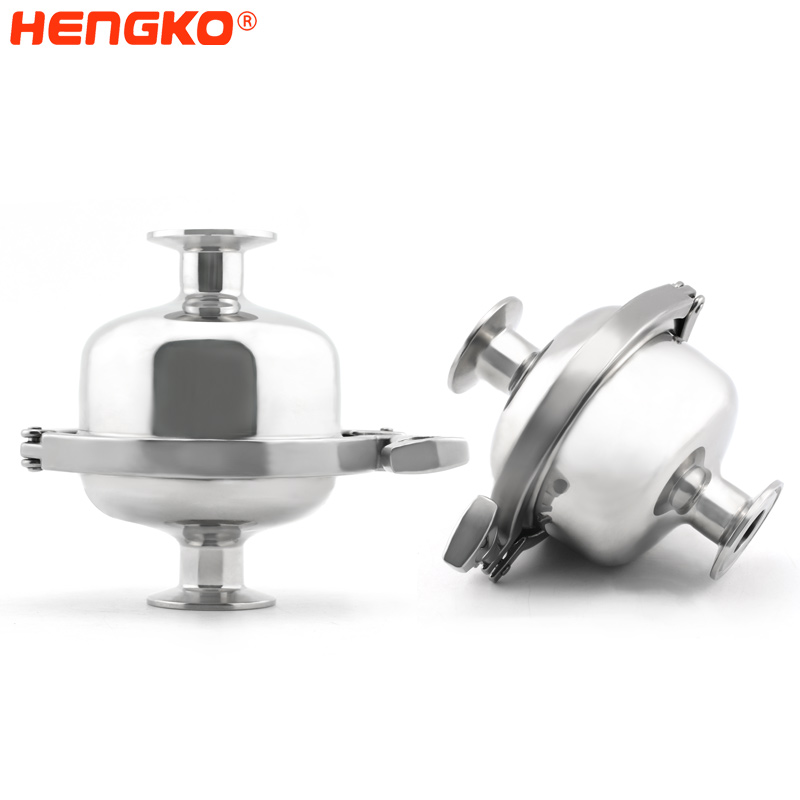

HENGKO porous metal disc test filter for Laboratory bench scale testing

Perfect for: - Laboratory bench scale testing -Feasibility studies -Smallscale, batch-type processes   HENGKO's designs and produces bench-top filter, our porous metal disc filter, is the simple, inexpensive way to effect liquid-solid and gas-solid separations with either vacuum or pressure. The first step to larger pilot and process systems, this filter offers an impressive array of benefits.

How it works The sintered metal disc test filter is a barrier-type filter. The lab data can be used to scale up to LSI, LSM, or LSP filter systems. Contaminated product enters the test filter and particulate is trapped on the surface of the porous disc while dean fluid exits the unit As contaminant builds on the filter media, fluid flow will decrease (under constant pressure) or pressure drop will increase (constant flow). At terminal conditions, flow is reversed to dislodge the filter cake and remove it from the housing.

Design advantages

. Accurate scale-up data for larger systems

. 316L SS porous metal and 316 SS housing

. Easy assembly

. Compact design

. Other porous metals available upon request

Flexibility (features/benefits)

The HENGKO stainless steel sintered disc filter is capable of operating in a variety of modes depending on separation requirements.

Complete performance data capabilities

- Flow vs.AP - Cake characteristics

- Backilush ability

- Washing efficiency

- Solids capture rating

- Body feed

-Cyde time High

-temperature operation

- temperatures to 250℃ High-pressure/vacuum operation

-Pressures to 150 psig and vacuums to -14.7 psigrealized with the same unit

- Compact design
