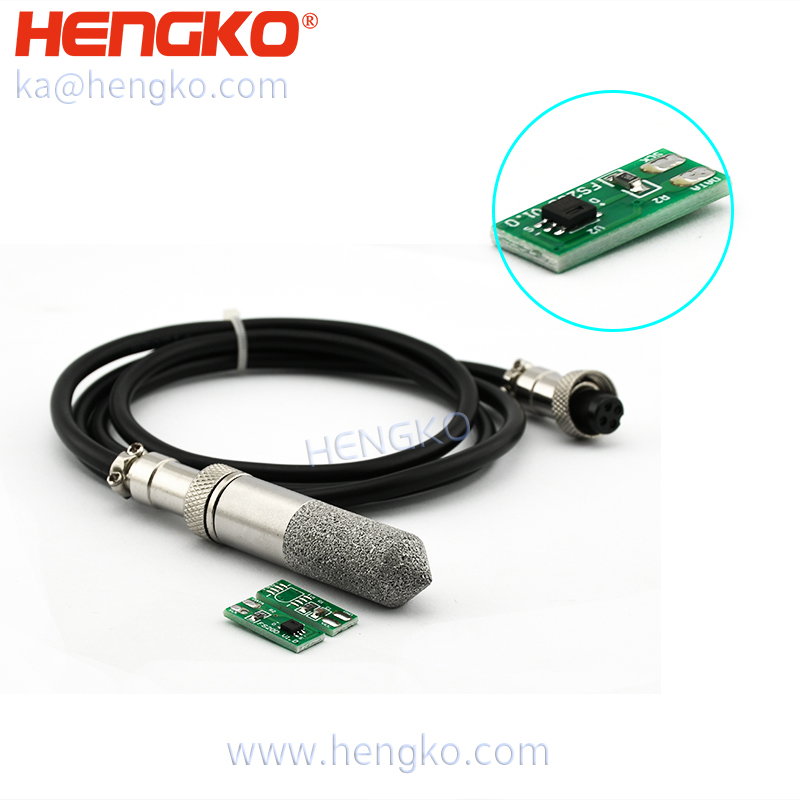

Digital I2C RHT-H85 temperature & relative humidity sensor probe for HVAC Incubator -40 to +125 °C ±0.1°C, ±1.5%RH
HENGKO RHT-85 sensor is a robust, high-accuracy, digital probe, the product adopts a capacitive digital sensor as the temperature and humidity measurement component, and is equipped with a stable and reliable signal processing circuit to convert the temperature and humidity in the environment into the corresponding standard signal Choose Gaopin. The quality integrated digital temperature and humidity sensor ensures the transmitter's long-term stability, low delate and strong resistance to chemical pollution, and the transmitter's repeatability.
Typical Applications
Environmental monitoring
Weather forecasting solutions
Industrial data acquisition
Precision agriculture/farming
Cold chain and HVAC applications
Internet of things (IoT)
Want more information or would you like to receive a quote?
Please click the CHAT NOW button at the top to contact our salespeople.
E-mail:
ka@hengko.com sales@hengko.com f@hengko.com h@hengko.com
Digital High-precision I2C Output RHT-H85 temperature & relative humidity sensor probe for HVAC Incubator in-40 to +105 °C ±0.1 °C, ±1.5%RH
HENGKO deliver reliable, accurate readings across a variety of applications including HVAC, hospitals, food storage, warehouses, pharmaceutical clean rooms and more.Our large selection includes ±2% and ±1.5% humidity and temperature measurement HVAC sensor , RH/T sensors and also handheld meters.

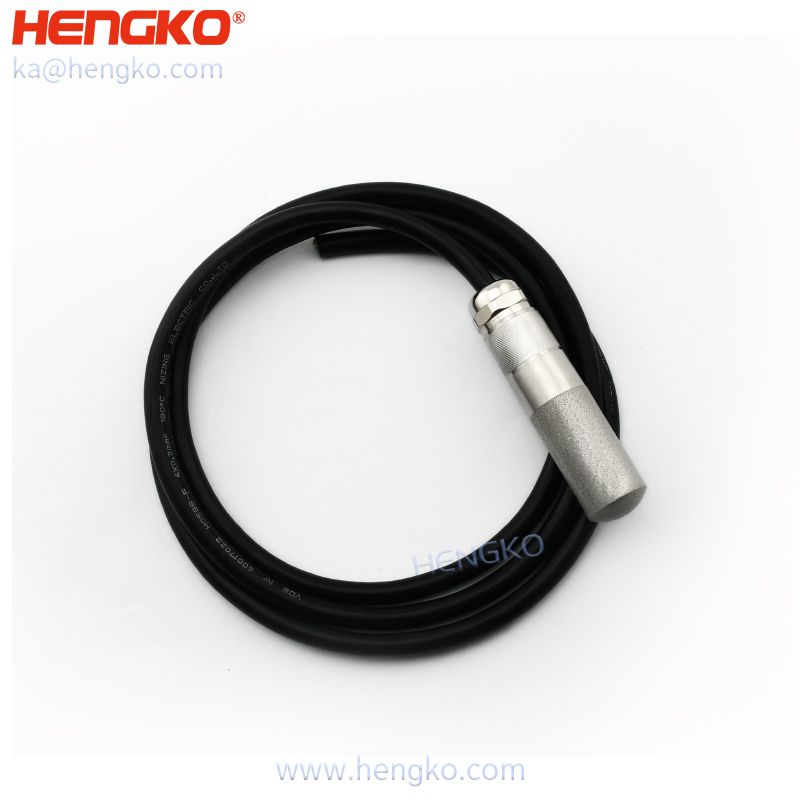

Temperature and humidity sensor probe housing:
Enclosure IP65
Sintered stainless steel material
Accurate pore size, uniform and even-distributed apertures
The appearance of the protective enclosure can be selected in a variety of specifications, and can be customized
Humidity and Temperature Sensor Specifications
▁▁ ▁▁ ▁▁ ▁▁ ▁▁ ▁▁ ▁▁
| Parameter | Conditions | Value | Units | Temperature sensor specifications | ||||
| Accuracy tolerance | Typ. | ±1.5 | %RH | Parameter | Conditions | Value | Units | |
| Max. | see Figure 1 | - | Accuracy tolerance | Max. | see Figure 2 | - | ||
| Repeatability | Low, typ. | 0.21 | %RH | Typ., 20°C to 50 °C | ±0.1 | °C | ||
| Medium,typ. | 0.15 | %RH | Repeatability | Low, typ. | 0.15 | °C | ||
| High, typ. | 0.08 | %RH | Medium,typ. | 0.08 | °C | |||
| Resolution | Typ. | 0.01 | %RH | High, typ | 0.04 | °C | ||
| Hysteresis | At 25°C | ±0.8 | %RH | Resolution | Typ | 0.01 | °C | |
| Specified range | Non-condensing environment | 0 to 100 | %RH | Operating range | - | –40 to 105 | °C | |
| Response time | t63% | 8 | s | Response time | t63% | >2 | s | |
| Long-term drift | Typ | <0.25 | %RH/y | Long-term drift | Max | <0.03 | °C/y | |
RHT-H85 is HENGKO'S new style temperature and humidity sensor.It builds on a highly accurate and long-term stable RHT3x sensor that is at the heart of HENGKO’s new humidity and temperature platform.
HENGKO Provides RHT-H serious chips to help you choose our temperature transmitter/control /sensor/probe humidity and other products that to meet your measurement in different enviroment.
Can't find a product that meets your needs? Contact our sales staff for OEM/ODM customization services!
