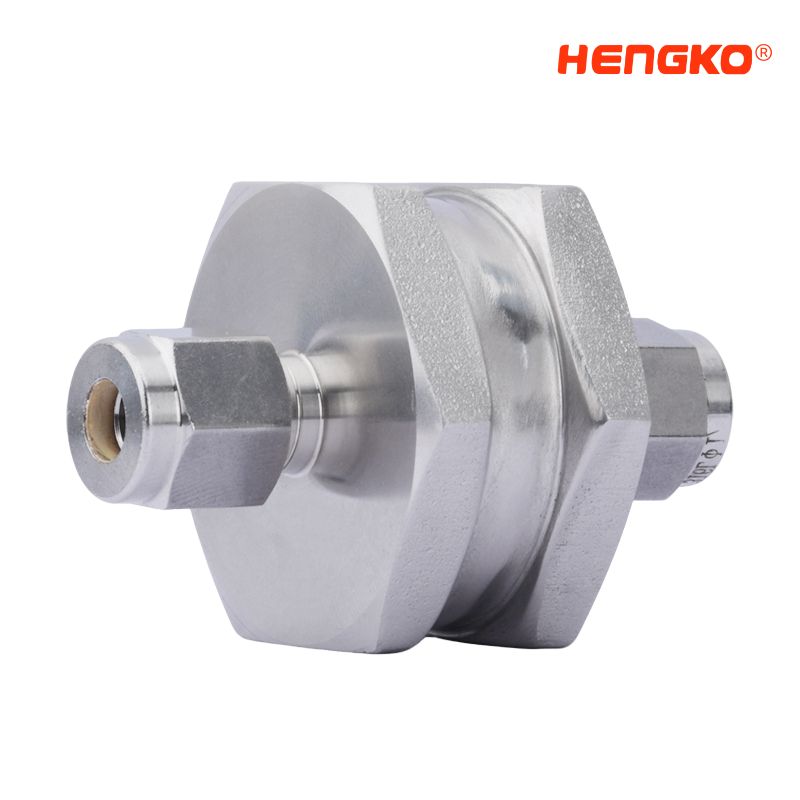

Precision Inline Gas Filter for Instrumentation Systems Swagelok Replacement
Features of Stainless Steel GAS / Liquid Inline Filters

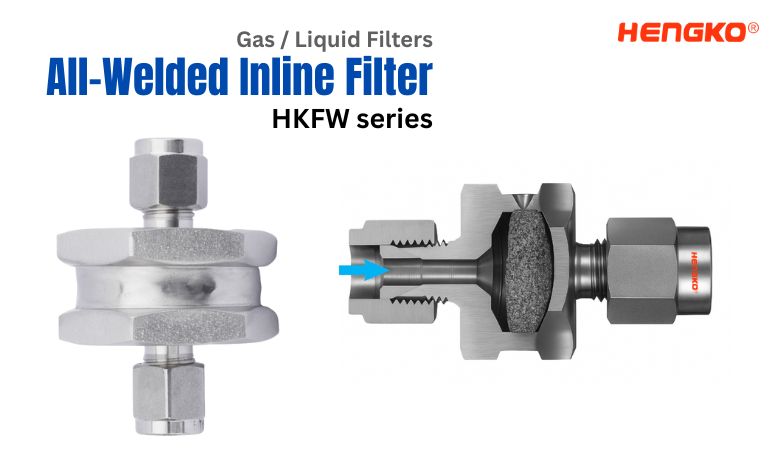

*All-welded straight-through construction ensures no leakage and safe liquid containment.
*Compact inline design suitable for tight installation spaces.
*Reverse flow cleaning allows for easy maintenance and reuse.

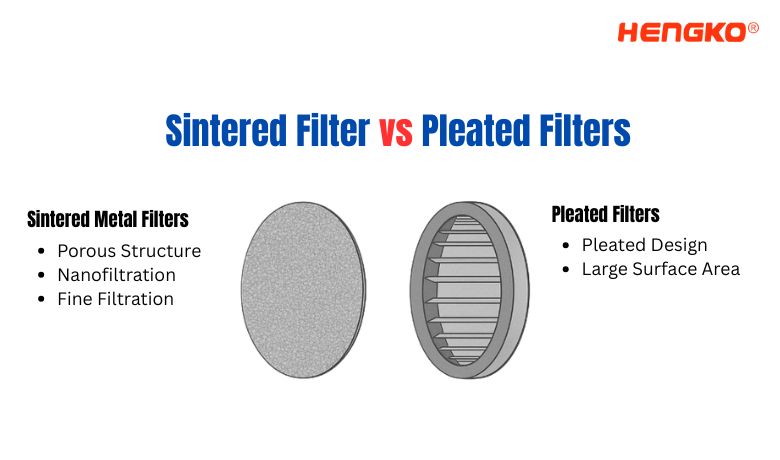

*Multiple filtration element options:
-Sintered element with 0.5 μm nominal pore size
-Pleated mesh elements with 2.7 μm and 15 μm nominal pore sizes
*Flexible connection types including:
-Compression tube fittings
-NPT threaded ends
-Male face seal fittings
Specification
Here’s a table based on the data in the image:
| Inlet/Outlet Connection | Size | Nominal Pore Size (µm) | Basic Part Number | Orifice in. (mm) | A Dimension in. (mm) |
| Compression Fitting | 1/4 in. | 0.5 | HG-SS-4FWS- | 0.187 (4.75) | 2.09 (53.1) |
| Compression Fitting | 1/4 in. | 2, 7, 15 | HG-SS-4FW- | 0.187 (4.75) | 2.15 (54.6) |
| Compression Fitting | 6 mm | 0.5 | HG-SS-6FWS-MM- | 0.187 (4.75) | 2.13 (54.1) |
| Compression Fitting | 6 mm | 2, 7, 15 | HG-SS-6FW-MM- | 0.187 (4.75) | 2.15 (54.6) |
| Female NPT | 1/4 in. | 2, 7, 15 | HG-SS-4FW4- | 0.453 (11.5) | 1.57 (39.9) |
| Male NPT | 1/4 in. | 2, 7, 15 | HG-SS-4FW2- | 0.281 (7.14) | 1.89 (48.0) |
| Male/Female NPT | 1/4 in. | 2, 7, 15 | HG-SS-4FW5- | 0.281 (7.14) | 1.72 (43.7) |
| Male VCR庐 Face Seal | 1/4 in. | 0.5 | HG-SS-4FWS-VCR- | 0.187 (4.75) | 2.00 (50.8) |
| Male VCR庐 Face Seal | 1/4 in. | 2, 7, 15 | HG-SS-4FW-VCR- | 0.187 (4.75) | 2.04 (51.8) |
Application
1. Gas Chromatography (GC) and Analytical Instruments
*Protect sensitive detectors and columns from particulate contamination
*Used as pre-filters in laboratory gas lines (e.g., carrier gas purification)
2. Semiconductor & Electronics Manufacturing
*Filter ultra-pure gases (e.g., nitrogen, argon, hydrogen) used in wafer processing
*Prevent contamination in gas cabinets and point-of-use systems
3. Chemical and Petrochemical Processing
*Inline filtering of process gases and liquids to protect downstream valves and regulators
*Corrosion-resistant 316L filters handle aggressive media
4. Instrumentation and Control Systems
*Installed before pressure regulators, transmitters, and gauges to prevent blockage
*Ensure clean flow in compact instrumentation panels
5. Pharmaceutical and Biotech Facilities
*Inline filtration of inert gases like nitrogen in cleanroom operations
*Sanitary-compatible filtering of process liquids in small-volume systems
6. Food and Beverage Industry
*Filtration of CO₂ or nitrogen in bottling and packaging systems
*Suitable for low-volume CIP (Clean-in-Place) gas lines
7. Hydrogen Fuel Systems & Energy Sector
*Inline filters for hydrogen pipelines or hydrogen generator outlets
*Ensures protection of MFCs (mass flow controllers) and sensors
8. Vacuum Systems and Sampling Lines
*Installed in vacuum exhaust systems to prevent back-contamination
*Used in environmental sampling equipment for gas or vapor filtration
