In industrial separation processes, micron size selection directly affects filtration precision
and operational efficiency. The micron rating determines which particles are retained,
influencing product purity and equipment protection.
Oversizing reduces contaminant control, while undersizing increases pressure drop and energy consumption.
An incorrect specification can lead to instability, higher maintenance, and costly downtime.
What Is a Micron in Filtration?
A micron (µm) is a unit of length equal to one-millionth of a meter (0.001 mm).
In filtration, micron size refers to
the diameter of particles a filter can remove.
Smaller micron ratings capture finer particles and provide higher filtration efficiency.
Micron ratings are fundamental in:
*Industrial gas filtration systems
*Liquid filtration systems
*Pharmaceutical processing
*Chemical and petrochemical plants
*Semiconductor manufacturing
*Food and beverage production
*Water and wastewater treatment
Understanding micron size is essential for controlling contamination, maintaining process stability,
and achieving required cleanliness standards such as ISO particle classification.

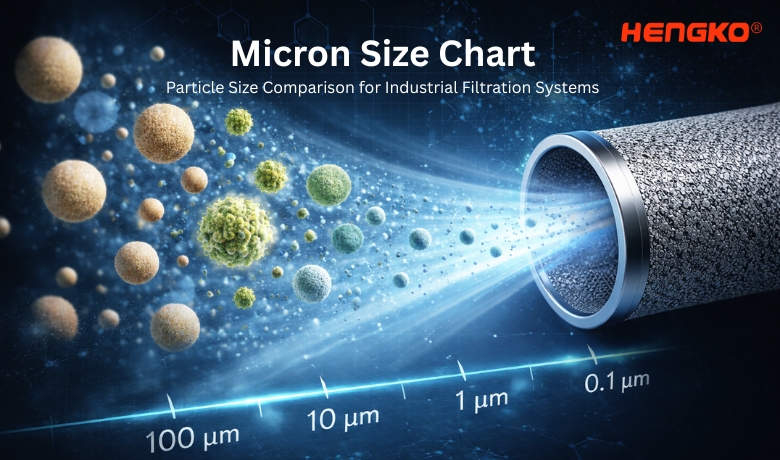

Micron Size Chart (Particle Size Comparison Reference)
The chart below compares common particles encountered in industrial environments.
| Particle | Size (Microns) |
|---|---|
| Gravel | 2000+ µm |
| Coarse Sand | 500–2000 µm |
| Fine Sand | 100–500 µm |
| Human Hair | 60–80 µm |
| Cement Dust | 3–100 µm |
| Flour | 1–100 µm |
| Industrial Metal Powder | 5–50 µm |
| Catalyst Particles | 1–20 µm |
| Pollen | 10–100 µm |
| Mold Spores | 3–40 µm |
| Bacteria | 0.3–5 µm |
| Carbon Black | 0.01–0.1 µm |
| Smoke | 0.01–1 µm |
| Viruses | 0.02–0.3 µm |
This particle size comparison demonstrates why micron rating directly impacts
filtration efficiency and contaminant removal performance.
For example:
*A 50-micron filter removes visible sand and debris.
*A 10-micron filter captures fine dust and many industrial powders.
*A 1-micron filter targets fine particulate contamination.
*A 0.2-micron filter is used for sterile filtration and bacterial removal.
However, micron size alone does not determine real-world filtration performance.
Pore structure, media thickness, and retention rating are equally important.
Micron Rating Explained: Nominal vs Absolute vs Retention Efficiency
1. Nominal Micron Rating
A nominal rating typically means the filter removes 60–95% of particles at the specified size.
Nominal-rated filters are common in:
*Depth filter cartridges
*Melt-blown polypropylene filters
*General industrial pre-filtration
Nominal filtration is suitable where partial contaminant reduction is acceptable.
2. Absolute Micron Rating
An absolute rating generally indicates ≥99% particle removal efficiency at the stated micron size.
Absolute-rated filters are used in:
*High purity gas systems
*Pharmaceutical liquid filtration
*Semiconductor applications
*Critical process filtration
Absolute retention provides predictable performance and lower downstream contamination risk.
3. Beta Ratio (βx) and Filtration Efficiency
Industrial filtration performance is often defined by Beta ratio:
βx = Upstream particle count ÷ Downstream particle count
For example:
β10 = 1000
Filtration efficiency = 99.9% at 10 microns
This standardized method allows engineers to compare filter elements objectively.
Micron Size, Pore Size, and Filtration Mechanism
Micron rating is closely related to pore size distribution within the filter media.
There are two primary filtration mechanisms:
Surface Filtration
*Particles are captured on the surface
*Often membrane-based
*Defined pore size
*Lower dirt holding capacity
Depth Filtration
*Particles are trapped within media thickness
*Higher contaminant holding capacity
*More gradual pressure drop increase
Sintered stainless steel porous media combines structural rigidity with controlled pore distribution,
offering both depth filtration and mechanical strength.
Micron Size in Industrial Gas Filtration
In compressed air and process gas systems, micron selection directly affects:
*Equipment protection
*Valve performance
*Catalyst life
*Product purity
Typical gas filtration stages:
| Stage | Micron Range | Purpose |
|---|---|---|
| Pre-Filter | 20–40 µm | Remove large particles |
| Fine Filter | 5–10 µm | Protect equipment |
| Final Filter | 0.2–1 µm | High purity filtration |
In semiconductor manufacturing and specialty gas systems,
sub-micron filtration prevents micro-contamination that could damage wafers or process chambers.
Micron Size in Liquid Filtration Systems
In liquid processes, micron rating influences:
*Flow rate
*Pressure drop
*Pump efficiency
*Filter service life
Applications include:
*Chemical solvents
*Polymer melts
*Pharmaceutical intermediates
*Beverage clarification
*Catalyst recovery
Choosing too small a micron rating increases differential pressure and energy consumption.
Choosing too large reduces contaminant removal efficiency.
Engineering balance is critical.
Micron Size in Sintered Stainless Steel Filters
Sintered stainless steel filters are widely used in high-temperature and high-pressure applications due to their:
*Uniform pore size distribution
*High mechanical strength
*Corrosion resistance
*Reusability and cleanability
*Stable micron retention
Typical micron ranges available:
0.1 µm – 100 µm
Because pore size is formed during powder metallurgy sintering,
the resulting structure offers consistent absolute retention and long service life.
Common industrial uses include:
*Steam filtration
*Process gas filtration
*Polymer extrusion filtration
*Catalyst support filtration
*High-pressure hydrogen systems
Unlike disposable polymer filters, sintered metal elements withstand aggressive environments and repeated backwashing.
Micron vs Mesh Size Conversion
Mesh size measures screen openings per linear inch.
Higher mesh number = smaller openings.
Approximate micron conversion:
| Mesh | Microns |
|---|---|
| 20 | 850 µm |
| 40 | 425 µm |
| 60 | 250 µm |
| 100 | 150 µm |
| 200 | 75 µm |
| 325 | 44 µm |
Mesh conversion is approximate because wire diameter influences actual opening size.
For precision filtration systems, micron rating and pore size distribution provide more reliable performance indicators.
How to Choose the Correct Micron Rating
Selecting the appropriate micron size requires evaluating:
*Contaminant particle size distribution
*Required cleanliness standard
*Operating pressure and temperature
*Fluid type (gas or liquid)
*Acceptable pressure drop
*Cleaning method (CIP, backwash, ultrasonic)
*Required service life
In critical systems, staged filtration improves efficiency and reduces operating cost.
Example:
20 µm pre-filter
→ 5 µm intermediate filter
→ 0.2 µm final filter
This layered approach optimizes contaminant removal and extends element lifespan.
Frequently Asked Questions
Is 1 micron smaller than 5 micron?
Yes. A 1-micron filter captures smaller particles than a 5-micron filter and provides finer filtration.
What micron filter removes bacteria?
Most bacteria range from 0.3 to 5 microns.
A 0.2-micron absolute filter is commonly used for bacterial retention.
Does smaller micron mean better filtration?
Not always. Smaller micron ratings increase filtration efficiency but also increase pressure
drop and energy consumption. System design must balance performance and cost.
What micron filter is used for high purity gas?
High purity gas systems often use 0.01–0.5 micron rated filters depending on contamination tolerance.
Conclusion
A micron size chart is a foundational reference tool for filtration system design.
Understanding:
*Particle size comparison
*Micron rating standards
*Nominal vs absolute retention
*Beta ratio efficiency
*Pore size distribution
*Pressure drop impact
allows engineers to optimize separation technology for specific industrial applications.
In demanding environments requiring durability, corrosion resistance, and precise micron control,
sintered stainless steel filtration elements provide stable and repeatable performance across a wide micron range.
Correct micron selection protects downstream equipment, ensures product quality, and reduces long-term operating cost.
