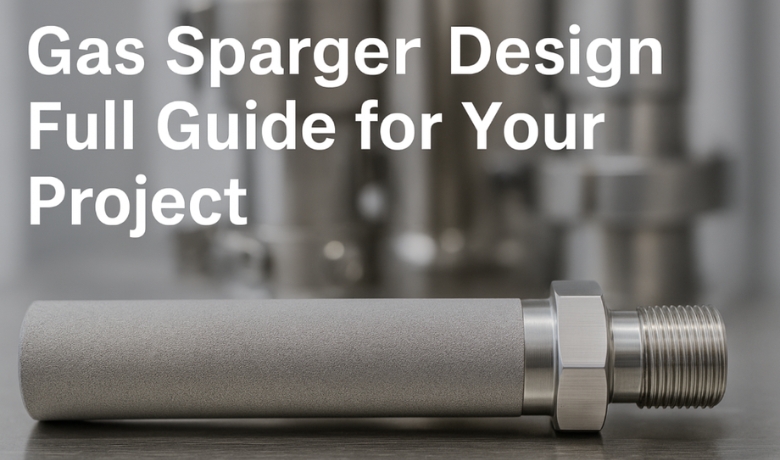

Gas Sparger Design Full Guide for Your Project

Gas spargers are essential components used across a wide range of industrial equipment—from fermenters and chemical reactors to gas-liquid contactors and bioreactors. However, not all spargers are created equal, and selecting or designing the right one can make a significant difference in process efficiency, gas utilization, and overall system performance.

In this guide, we’ll draw on our hands-on industry experience to walk you through the key considerations in gas sparger design—including material selection, pore size, gas flow rate, system integration, and more. Whether you're developing a chemical processing plant, upgrading a fermentation line, or customizing equipment for biopharma applications, this guide will help ensure your sparger design is optimized for both performance and reliability.

What is a Gas Sparger Design?

A gas sparger is a device used to introduce gases into liquids, typically by forcing the gas through a porous material that disperses it into fine bubbles. Gas spargers work by injecting gas into the liquid, dispersing it into fine bubbles to maximize the surface area for gas absorption. These bubbles enhance gas–liquid interaction, which is critical in many industrial processes where efficient mass transfer is required.

Gas spargers are commonly used in two phase flow systems, where gas and liquid phases interact to enhance mass transfer.

Why Sparging Matters

Gas sparging plays a vital role in a wide range of industries:

*Biopharmaceuticals: Oxygenation in bioreactors to support cell growth

*Fermentation: CO₂ removal and oxygen delivery for microbial activity

*Chemical Processing: Gas–liquid reactions, stripping, or pH control

*Wastewater Treatment: Aeration and volatile compound removal

Proper sparger design and operational parameters contribute to improved gas distribution, process efficiency, and product yield. Proper sparging improves reaction efficiency, product yield, and energy use. But poor design can lead to uneven gas distribution, reduced process performance, and even contamination. Poor sparger design can also negatively impact the operation of gas–liquid processes, causing inefficiencies and increasing the risk of contamination during process execution.

Purpose of This Guide

So for this guide is designed to help engineers, system integrators, and project managers understand the fundamentals of sparging and make informed decisions when designing or selecting a gas sparger. From sparger types and materials to sizing, placement, and system compatibility—this guide walks you through everything you need to know to optimize your gas–liquid process.

1. Understanding the Basics of Sparging

What is Sparging Used For?

Sparging is the process of introducing a gas into a liquid through a sparger, typically to achieve better gas–liquid interaction. It’s used in a wide range of industries and applications, such as:

*Fermentation – Supplying oxygen or air to microorganisms or cells for aerobic growth

*Stripping – Removing unwanted volatile compounds (e.g., CO₂, solvents, ammonia) from liquid streams

*Oxygenation – Dissolving oxygen into water or other process liquids in biopharma and aquaculture

*pH Control & Reaction Support – Introducing reactive gases like CO₂ or H₂ into reactors for chemical processing

*Water Treatment – Aerating water to oxidize and precipitate dissolved metals or support aerobic biological processes

*Stirred tank reactors – Used for gas–liquid dispersion and mixing efficiency in chemical, wastewater treatment, and biochemical processes

*Bubble column – Applied in chemical reactors for efficient gas–liquid contact and mass transfer

Sparging helps optimize mass transfer and process efficiency across all these applications.

How Does a Gas Sparger Work?

A gas sparger typically consists of a porous metal or ceramic tube, plate, or cartridge that allows compressed gas to pass through small pores into the surrounding liquid. In this process, the gas phase is dispersed into the liquid, forming fine bubbles. Here, the liquid acts as the continuous phase, with gas bubbles dispersed throughout. The result is the formation of fine bubbles, which dramatically increase the gas-to-liquid interface area—a critical factor for effective mass transfer.

Key principles:

*Smaller bubbles = larger surface area for the same volume of gas

*Uniform dispersion ensures consistent reaction conditions and prevents channeling

*Controlled flow rate and backpressure help optimize dissolution and minimize waste

Whether you’re sparging oxygen into a bioreactor or nitrogen into a solvent tank, bubble size and distribution play a major role in achieving your process goals. The resulting flow pattern in the tank is influenced by sparger design and operating conditions, affecting how bubbles are distributed and mixed throughout the liquid.

What is the Purpose of a Sparger?

The main goal of using a gas sparger is to maximize gas transfer efficiency while minimizing operational cost and variability. A well-designed sparger helps:

*Improve gas absorption by increasing the contact surface between gas and liquid

*Reduce gas waste by ensuring more gas dissolves instead of escaping

*Stabilize process conditions for reactions, fermentation, or pH control

*Ensure safety in systems using reactive or flammable gases by allowing precise gas dosing

Optimal gas transfer efficiency is achieved through proper sparger design and operational control.

The design of the sparger and operational parameters strongly influence gas absorption, process stability, and overall efficiency.

In short, spargers enable better process control, higher product yield, and lower gas consumption

—all of which are crucial in industrial-scale operations.

2. Types of Spargers and Applications

Choosing the right type of sparger is critical to achieving your process goals. While many configurations exist, most spargers fall into three main categories—each with distinct characteristics and suitable use cases. One common type is the pipe sparger, frequently used in bubble column reactors. Pipe spargers typically consist of a perforated pipe that distributes air or gas evenly through multiple holes, allowing for efficient bubble formation and improved gas-liquid contact.

1. Porous Metal Sparger

Porous metal spargers are made from sintered stainless steel or other alloys with a controlled pore structure. They generate extremely fine and uniform bubbles, maximizing gas–liquid contact area.

*Advantages: High gas transfer efficiency, precise flow control, excellent durability

*Best for: Biopharma fermentation, ultrapure chemical processes, lab-scale or high-precision gas dosing

2. Orifice Sparger

The orifice sparger is the most basic type, consisting of drilled holes or slits in a pipe submerged in liquid. Gas escapes through the openings, forming medium to large bubbles.

*Advantages: Simple design, low cost, easy to fabricate

*Best for: General-purpose aeration, CO₂ stripping, low-precision applications

3. Nozzle Sparger

Nozzle spargers inject gas into a liquid through small high-velocity openings, sometimes assisted by venturi effects. They produce moderate-sized bubbles and can create localized turbulence to aid mixing.

*Advantages: Promotes mixing, suitable for high-flow systems

*Best for: Chemical reactors, agitation enhancement, fast gas delivery

Sparger Selection Comparison Table

Each sparger type offers a trade-off between cost, complexity, and performance.

If your application demands fine control, maximum gas utilization, or sterile conditions, porous metal spargers are typically the go-to choice.

3. Gas Sparger Design Guide (Step-by-Step)

Designing a gas sparger isn't just about choosing a component—it’s about engineering it to integrate perfectly with your process, maximize gas transfer, and ensure long-term reliability. Here’s a step-by-step guide to help you make the right decisions:

Step 1: Define Your Process Requirements

Before selecting a sparger, clearly outline your system needs. Key parameters include:

*Gas Type: O₂, CO₂, H₂, N₂, air, etc.—each has different solubility and safety profiles

*Liquid Properties: Viscosity, temperature, pH, and chemical compatibility

*Flow Rates & Pressure Ranges:

Both gas and liquid flow rates; specifically, determining the required gas flow rate is critical for sparger design, as it influences bubble size, dispersion, and overall mixing quality. It is essential to measure the actual gas flow rate during system commissioning to ensure it matches design specifications. Also consider inlet and backpressure levels.

*Sterility or Cleanliness Needs:

For bioprocess or food-grade applications

All relevant factors, such as temperature, fluid properties, and material compatibility, must be taken into account to ensure optimal sparger selection and system performance.

Tip: For reactive or corrosive gases (like H₂ or Cl₂), always factor in material compatibility and pressure ratings.

 Step 2: Choose the Right Sparger Type

Select a sparger design that matches your performance goals and operating conditions:

*Porous Metal Spargers – For fine bubbles, cleanability, and precision gas dosing

*Orifice Spargers – For simple, cost-effective aeration or degassing

*Nozzle Spargers – When turbulence and mixing are desired along with gas transfer

Some advanced systems use a combination of sparger designs to achieve specific process goals, allowing for greater flexibility and compatibility in various setups. These configurations provide tailored solutions for unique process requirements, addressing technical challenges such as optimizing sparger performance or enhancing gas-liquid transfer efficiency.

Balance performance vs. complexity. In high-value or critical processes, porous spargers typically outperform.

Step 3: Determine the Ideal Pore Size / Orifice Size

For porous spargers:

*Typical pore size: 0.5–20 µm

*Spargers are available in different sizes to suit various process needs and optimize gas dispersion.

*When selecting a sparger, calculating the optimal sparger size and gas exit velocity based on process parameters such as gas and liquid flow rates, vessel volume, and desired bubble size can significantly improve gas dispersion efficiency.

*Smaller pores = finer bubbles, which means greater gas-liquid contact area

*Larger pores = lower backpressure but coarser dispersion

For orifice/nozzle designs:

*Orifices and nozzles come in different sizes; the hole or slit diameter will directly affect bubble size and dispersion pattern

*Consider CFD or pilot testing for large-scale systems

Rule of thumb: Go smaller if you’re aiming for high gas absorption or dealing with low-solubility gases like O₂.

Step 4: Select the Right Materials & Connections

Spargers must withstand chemical exposure, pressure, and temperature. Common materials:

*316L Stainless Steel – Industry standard, corrosion-resistant, durable
*Hastelloy – For aggressive chemical environments (chlorides, acids)
*PTFE or PFA Coated – Non-stick and chemically inert for specialty processes

Connection Types:

*Threaded (NPT, BSP) – Easy for compact setups
*Flanged – Robust for industrial-scale systems
*Tri-clamp – Hygienic, ideal for food and pharma

Spargers can be mounted using threaded, flanged, or tri-clamp fittings, depending on system requirements.

Step 5: Design for Cleanability & Maintenance

Especially in regulated industries, cleanability is key.

*CIP (Clean-In-Place) / SIP (Sterilize-In-Place) compatibility ensures minimal downtime

*Removable vs. Welded-in Designs – Choose based on how often maintenance or inspection is needed

*Consider backflushing capability to prevent clogging in fine-pore spargers

For GMP-compliant processes, always confirm cleaning validation and surface finish standards (e.g., Ra ≤ 0.4 µm).

With these 5 steps, you can design a sparger that’s optimized for your process—ensuring performance, reliability, and long-term ROI.

4. Performance Considerations and Enhancements

Does Sparging Improve Efficiency?

Absolutely. Sparging is a key performance enhancer in many gas–liquid systems. When designed and implemented correctly, it offers multiple operational advantages:

*Reduces Reaction Time: By increasing the surface area for gas transfer, sparging accelerates mass transfer rates, leading to faster reactions.

*Boosts Product Yield: In processes like fermentation and oxidation, improved gas solubility directly correlates with higher output.

*Improves Process Consistency: Uniform bubble distribution ensures stable operating conditions and minimizes batch-to-batch variation.

*Minimizes Gas Waste: Controlled bubble size and dispersion decrease the amount of gas lost to the atmosphere, optimizing usage and cost.

These efficiency improvements have been measured in various experimental results, which demonstrate the effectiveness of sparging in real-world applications. Optimized sparging also leads to a reduction of operational costs and inefficiencies by minimizing gas waste and undesirable process phenomena.

Controlled sparging = maximum gas absorption with minimal waste.

Case Study: Gas Sparging in Continuous Hydrogen Fermentation

In continuous biohydrogen production—such as dark fermentation or syngas fermentation

—sparging plays a crucial role in improving gas

–liquid mass transfer between the microbial culture and feed gases like H₂, CO₂, or syngas.

Experimental studies in hydrogen fermentation columns have demonstrated that varying the gas superficial velocity significantly impacts bubble rise behavior and induces transitions between different flow regimes, directly affecting mass transfer and reactor performance. Certain operational changes, such as increased liquid phase viscosity or altered flow rates, can lead to decreased gas holdup, which may negatively impact reactor performance by reducing the efficiency of gas–liquid contact.

*Enhanced Contact = Higher Hydrogen Yields: Sparging ensures the continuous removal of metabolic gases (e.g., CO₂, H₂) from the broth, avoiding inhibition.

*Improved pH and DO Control: With proper sparging, parameters like pH and dissolved oxygen can be tightly regulated, boosting microbial activity.

*Example Applications:

*Clostridium or Enterobacter fermentation for H₂ production

*Bioreactors converting syngas to alcohols or methane

*Algae-based hydrogen generation in photobioreactors

Studies show that fine-bubble sparging can increase hydrogen yield by 20–40% in optimized systems.

In short, efficient sparging isn’t just about gas delivery

—it’s a strategic lever for boosting overall system performance,

especially in biologically or chemically sensitive applications.

Role of Sparger in Fermenters and Bioreactors

What is the Role of a Sparger in a Fermenter?

In aerobic fermentation and cell culture processes, the sparger is a critical component for

maintaining proper gas exchange—especially the oxygen transfer rate (OTR),

which is essential for microbial or cellular growth.

Key roles include:

*Delivering Oxygen Efficiently: Most biological systems are oxygen-limited. Spargers ensure a steady supply of dissolved oxygen to maintain metabolic activity.

*Maintaining Homogeneity: Fine and evenly dispersed bubbles help mix nutrients, maintain pH balance, and ensure temperature uniformity.

*Supporting Productivity: Proper bubble size and dispersion reduce shear stress while maximizing contact, directly impacting cell viability and product yield.

The flow pattern within the vessel, influenced by sparger design and operating conditions, determines how bubbles are distributed and circulated, which in turn affects oxygen transfer and mixing efficiency. Impeller design and operation also play a crucial role, as the impeller works together with the sparger to optimize mixing and enhance oxygen transfer by promoting effective bubble dispersion and circulation. Additionally, the properties of the liquid phase, such as viscosity and composition, play a significant role in bubble dynamics and can impact both oxygen transfer and cell viability.

Inconsistent or large bubbles can create oxygen gradients, inhibit growth, or even damage sensitive cells.

How to Avoid Common Issues Like Foaming or Clogging?

Fermenters and bioreactors are prone to challenges like foaming, clogged spargers, and biofilm formation. Foaming and clogging are phenomena frequently encountered in gas–liquid bioprocesses. Here’s how to mitigate them:

Use Fine-Pore Metal Spargers

*Sintered stainless steel spargers with defined pore sizes (e.g., 1–10 µm) create uniform microbubbles

*Fine bubbles reduce surface agitation, which minimizes foam formation

*Durable and resistant to fouling, especially when steam-sterilized or CIP/SIP-compatible

Implement Anti-Foam Strategies

*Use automated antifoam dosing systems

*Add mechanical foam breakers or spray balls in extreme cases

*Choose low-foaming media formulations when possible

Design for Cleanability

*Ensure the sparger is removable or backflushable

*Integrate with CIP/SIP protocols for automatic cleaning

*Use materials like 316L stainless steel or Hastelloy to resist biofilm adhesion

In bioprocessing, spargers don’t just introduce gas—they’re essential to ensuring viability, consistency, and scalability. A well-chosen sparger helps maintain optimal oxygenation while preventing disruptions that can derail a production batch.

6. Methanol vs. Hydrogen in Gas Sparging (Advanced)

In certain bio-based processes and gas fermentation applications, both hydrogen (H₂) and methanol (CH₃OH) may be considered as feedstocks or electron donors. While hydrogen is known for its high energy content and clean combustion, methanol offers several practical and process-specific advantages, particularly in bioprocessing.

Advantages of Methanol Over Hydrogen in Sparging Systems

1. Improved Safety and Ease of Handling

*Methanol is a liquid at room temperature, making it easier and safer to store, transport,

 and meter into bioreactors compared to highly flammable, pressurized hydrogen gas.

*Reduces risks related to explosion or leakage in large-scale facilities.

2. Effective Carbon and Energy Source

*Methanol serves as both a carbon donor and electron donor, making it ideal for

methylotrophic fermentation—used in processes involving Pichia pastoris,

Methylobacterium, and similar organisms.

*It can be directly assimilated into biomass or used to synthesize value-added biochemicals like amino acids or alcohols.

3. Better Integration in Continuous Processes

*Liquid methanol dosing can be more precisely controlled over time, ensuring steady-state conditions

in continuous fermentation setups.

*No need for complex gas blending or high-pressure injection systems.

Application Spotlight: Methylotrophic Fermentation

In methylotrophic fermentation, organisms are specifically engineered or selected to metabolize methanol. This is used to:

*Produce recombinant proteins in biopharmaceuticals (e.g., via Pichia pastoris)

*Generate organic acids, single-cell proteins, or biofuels

*Reduce greenhouse gases by integrating methanol derived from CO₂ capture or syngas conversion

Summary: When to Use Methanol vs. Hydrogen

In summary: Methanol is often preferred for its versatility, safety, and compatibility with

continuous bio-based processes, while hydrogen remains ideal for applications focused on

clean energy or high redox reactions.

7. FAQ: Common Sparging Questions

To help you design and troubleshoot your gas sparging system more effectively,

here are answers to some of the most frequently searched questions about spargers:

What is the optimal flow rate for a sparger?

The optimal flow rate for a sparger depends on the application, tank size, and gas being used. It is important to calculate the required flow rate based on factors such as tank volume, gas type, and desired bubble size to ensure efficient gas dispersion. During system commissioning, the actual flow rate should be measured to confirm it matches the calculated values and to optimize performance.

What is the best sparger pore size for oxygenation?

For most dissolved oxygen applications—such as fermentation, aquaculture, or cell culture—the ideal pore size is typically 1 to 5 microns. This range creates fine microbubbles, which increase surface area and boost oxygen transfer efficiency (OTR).

 Fine pores = better gas absorption = improved process performance.

Can I use compressed air instead of nitrogen for sparging?

Yes, compressed air can be used for sparging in many applications, especially for general aeration or fermentation. However, in oxygen-sensitive or anaerobic processes (e.g., electronics, food, or pharma), nitrogen is preferred due to its inert nature and lower contamination risk.

Always verify air quality (oil/water-free) and microbial load if using in sterile processes.

What’s the difference between sparging and aeration?

While both involve introducing gas into a liquid, the method and objective differ:

Sparging is more precise and efficient—ideal for high-performance or closed systems.

How can I prevent clogging in a sparger?

Clogging is common in systems with particulates, viscous media, or biofilm formation. To prevent it:

*Use high-quality sintered metal spargers (e.g., 316L stainless steel)

*Ensure pre-filtration of process gas and liquid

*Design for CIP/SIP compatibility and allow for backflushing

*Avoid dead zones and ensure proper installation

Regular cleaning cycles and maintenance routines are essential for long-term performance.

What flow rate should I use for my sparger?

Flow rate depends on your application, gas type, tank size, and bubble size goals. A common starting point for many bioreactor systems is:

- 0.05 to 0.2 vvm (volume of gas per volume of liquid per minute)

When selecting the optimal flow rate, consider the superficial gas velocity, which is used to determine the appropriate gas flow rate for efficient sparging and effective bubble dispersion.

For high-efficiency systems or small-scale lab fermenters, lower flow rates (0.01–0.05 vvm) may be sufficient. For gas stripping or aggressive aeration, rates may exceed 0.5 vvm.

Fine-tune based on OTR, backpressure, and mixing requirements.

Conclusion: Design Matters in Effective Gas Sparging

Successful gas sparging is not just about choosing a component off the shelf—it’s about engineering a system that fits your exact process needs. From selecting the right sparger type and pore size to ensuring proper materials, connections, and cleanability, every design choice directly impacts efficiency, safety, and long-term performance.

In recent studies, computational fluid dynamics has proven invaluable for modeling and optimizing gas sparger design. Achieving good agreement between computational fluid dynamics simulations and experimental results is essential for validating and optimizing gas sparger performance in gas-liquid systems.

Whether you’re working in biopharma, chemical processing, fermentation, or water treatment, optimized sparging can lead to:

*Faster reaction times

*Higher product yield

*Lower gas consumption and waste

*Better process control and consistency

That’s why it pays to partner with an experienced OEM sparger manufacturer like HENGKO. We specialize

in custom-designed sintered metal spargers built to handle your unique pressure, flow, and chemical compatibility

requirements, including bioreactor spargers.

Let’s Design Your Next Sparger System

Ready to take your gas sparging performance to the next level?
Contact our engineering team to discuss your custom sparger needs:

Email: ka@hengko.com

Let’s turn your project requirements into a high-performance sparging solution.
