High temperature resistance sintered brass air pneumatic exhaust valve silencer connector filter for control cabinet assembly

Short Description:

  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: TT, paypal, credit card, etc.
  • Material: stainless steel304/316L, bronze, brass
  • Pore Size: 3 5 7 10 15 20 40 50 60 70 90um
  • Technique: sintered powder
  • Application: used to reduce dynamic noise of the pneumatic components or device exhaust
  • Product Detail

    Product Tags

    High temperature resistance sintered brass air pneumatic exhaust valve silencer connector filter for control cabinet assembly


    Product Description

    Pneumatic Sintered Mufflers Filters utitlize porous sintered stainless steel  filter element secured to standard pipe fittings. These compact and inexpensive mufflers are easy to install and maintain, particularly suitable where space is limited. They are used to diffuse air and muffler noise from the exhaust ports of air valves, air cylinders and air tools to an acceptable level within OSHA noise requirements.

    Mufflers are porous sintered bronze parts used to reduce the output pressure of a compressed gas, thus reducing noise when the gas is evacuated. They are made with B85 grade bronze, which has a filtering efficiency of 3-90um.

    blowers, compressors, engines, vacuum pumps, air motors, pneumatic equipment, fans and any other application that requires reduced noise level.


    Want more information or would like to receive a quote?

    Please click the Online Service button at the top right to contact our salespeople.


                                         ka@hengko.com              sales@hengko.com              f@hengko.com              h@hengko.com

    Product Show

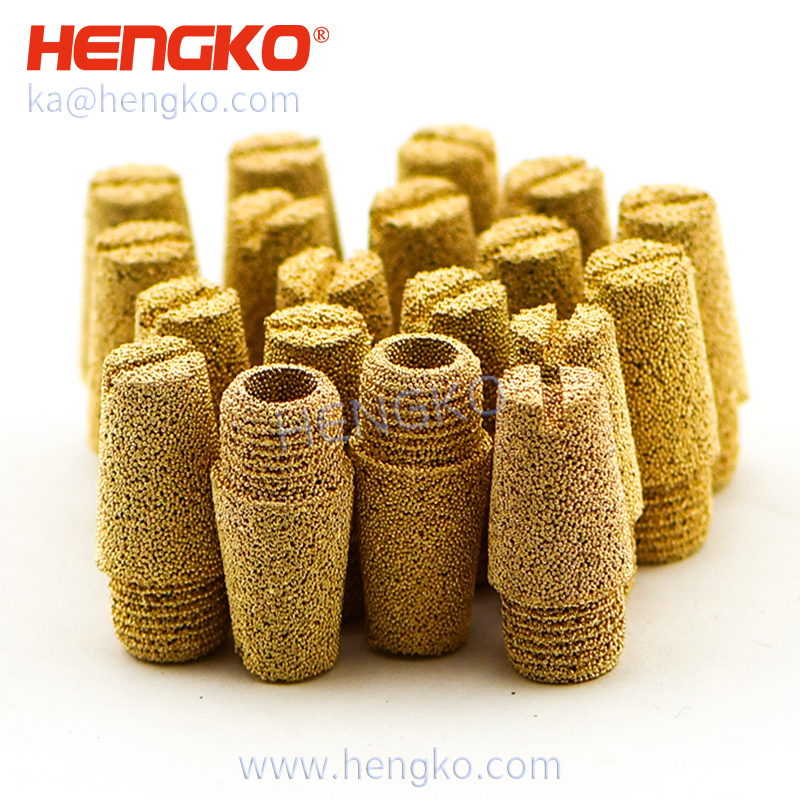

    air pneumatic muffler

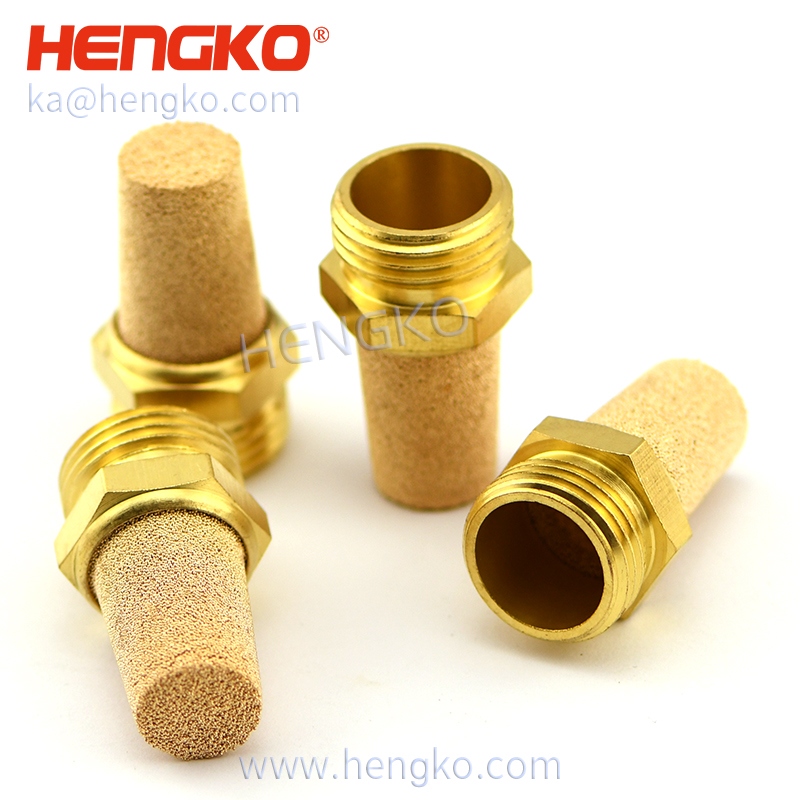

    male NPT  1/2''  muffler

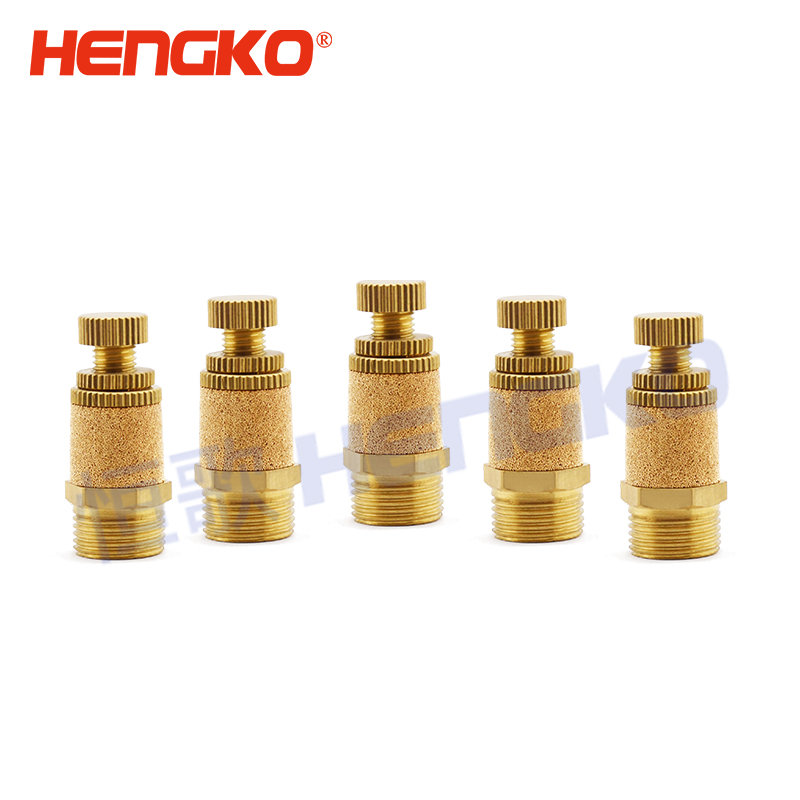

     Pneumatic Silencer

    Highly recommended


    Company Profile






    Q1. How many sizes available?

    M5, 1/4″, 1/8″, 3/8″, 1/2″, 1″, 1-1/2″, 2″, etc.


    Q2. What’s the material for filter media?

    sintered broze, sintered stainless steel


    Q3. Which thread type do you make?

    – G, NPT, BSP, PT, etc.
