Hengko 4 20ma analog temperature and humidity sensor module board pcb chips SHT series

Short Description:

  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: TT, paypal, credit card, etc.
  • Type: SHT sensor
  • Output: 4-20mA, RS485
  • Accuracy temperature: ±0.5℃@25℃ humidity: ±2% RH@(20~80)% RH
  • Working voltage: DC (3-5)V
  • Working current:: ≤50mA
  • Product Detail

    Product Tags

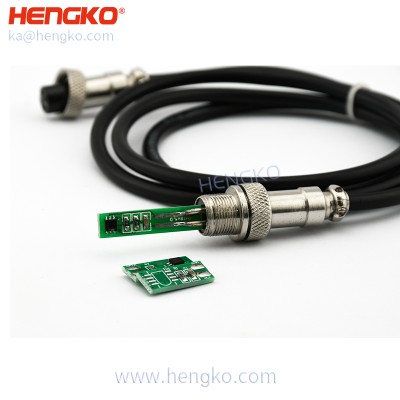

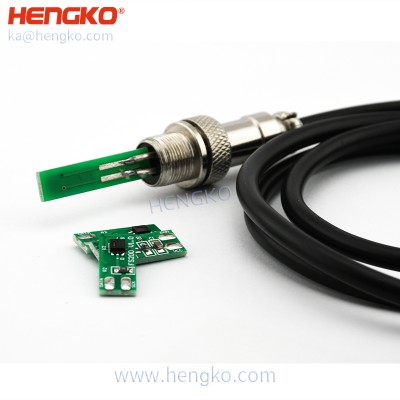

    Hengko 4 20ma analog temperature and humidity sensor module board pcb chips SHT series

    Product Description

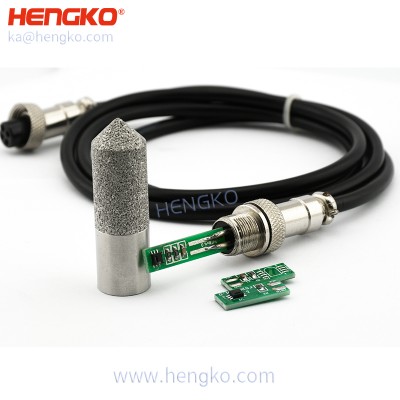

    HENGKO temperature and humidity module adopts high precision SHT series sensor euipped with a sintered metal filter shell for large air permeability, fast gas humidity flow and exchange rate. The shell is waterproof and will keep water from seeping into the body of the sensor and damaging it, but allows air to pass through so that it can measure the humidity (moisture) of the environment. It has been widely used in HVAC, consumer goods, weather stations, test & measurement, automation, medical, humidifiers, especially perform well in an extreme environment like acid, alkali, corrosion, high temperature and pressure.

    Theory: current and inductance
    Temperature range: -20~+100 ℃ -40~+125 ℃
    Humidity range: (0~100)% RH
    Features: Excellent long-term stability,
    Probe housing: sintered stainless steel material, can be customized.

    Want more information or would like to receive a quote?

    Click the Online Service button at the top right to contact our salespeople.


                                         ka@hengko.com              sales@hengko.com              f@hengko.com              h@hengko.com

    Product Show
    electronic pcb

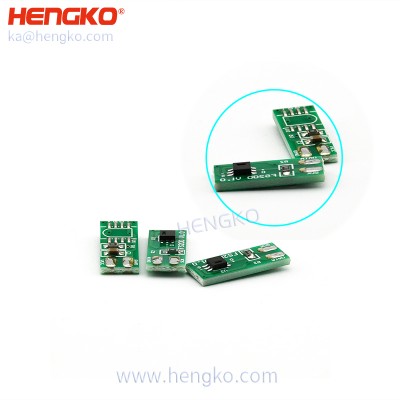

    DSC_6417 2
    humidity measurement
    Highly recommended


    Company Profile






    Q1. What’s the output?

    RS485, 4-20mA, wireless, etc.


    Q2. Is transimitter available?


    Q3. Can cable length and sensor type be customized?

    – Of course, standard cable length is one meter, sensor types can be SHT1x series, SHT2x series, and SHT3x series.
